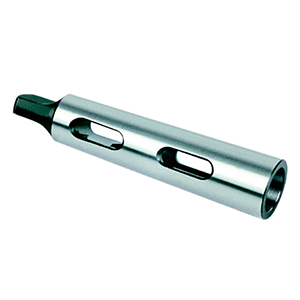

277 Morse taper sleeve
Product Detail
Order No. | MS.NO.S | MS.NO.T | L(mm) | L1(mm) | D(mm) | d(mm) | L2(mm) | L3(mm) |
277-30-10 | 3 | 1 | 99 | 94 | 23.825 | 12.065 | 13.5 | 19 |
277-30-20 | 2 | 112 | 17.780 | 5.5 | 22 | |||
277-40-10 |
4 | 1 | 124 |
117.5 |
31.267 | 12.065 | 12.5 | 19 |
277-40-20 | 2 | 124 | 17.780 | 16 | 22 | |||
277-40-30 | 3 | 129.5 | 23.825 | 24 | 36 | |||
277-08-50 | ME80 | 5 | 228 | 220 | 80 | 44.399 | 22 | 48 |
277-08-60 | ME80 | 6 | 280 | 63.348 | 22 | 48 |
