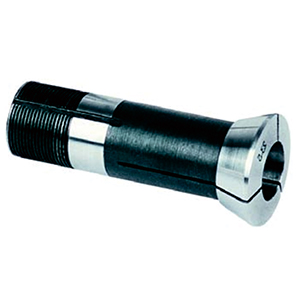

Product Detail
⒈ Material：65Mn
⒉ Hardness：clamping part HRC55～60 elastic part HRC40～45
⒊ This unit is applicable to all sorts of automatic lathes
Order No. | d1(mm) | D(mm) | L(mm) | dmax(mm) | g | Wt(kg) |
k8-d | 8 | 12 | 45 | 5 | M8×0.75 | 0.06 |
k10-d | 10 | 15 | 52 | 6 | Tr10×1 | 0.09 |
k12-d | 12 | 18 | 60 | 8 | Tr12×1 | 0.11 |
k16-d | 16 | 24 | 70 | 11 | Tr16×1.5 | 0.12 |
k20-d | 20 | 28 | 80 | 15 | Tr20×1.5 | 0.15 |
k23-d | 23 | 32 | 90 | 18 | Tr23×1.5 | 0.21 |
k28-d | 28 | 38 | 100 | 22 | Tr28×1.5 | 0.23 |
k32-d | 32 | 45 | 110 | 27 | Tr32×1.5 | 0.27 |
k45-d | 45 | 60 | 140 | 36 | Tr45×2 | 0.32 |
