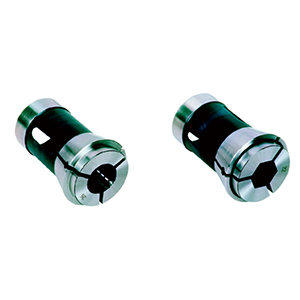

DIN6343 clamping collet
Product Detail
⒈ Material：65Mn
⒉ Hardness：clamping part HRC55～60 elastic part HRC40～45
⒊ This unit is applicable to all sorts of automatic lathes,turret lathes
Model | D1(mm) | D2(mm) | L(mm) | Hole size(mm) | Wt(kg) | ||
ROUND | SQUARE | HEX | |||||
DIN6343-F17.5 | 17.5 | 22 | 51 | 13 | 8 | 10 | 0.05 |
DIN6343-F22 | 22 | 30 | 55 | 16 | 11 | 13 | 0.09 |
DIN6343-F27 | 27 | 38 | 72.7 | 22 | 15 | 19 | 0.10 |
DIN6343-F28 | 28 | 38 | 70 | 22 | 15 | 19 | 0.12 |
DIN6343-F32 | 32 | 45 | 75 | 26 | 18 | 22 | 0.27 |
DIN6343-F35 | 35 | 48 | 80 | 30 | 21 | 26 | 0.35 |
DIN6343-F42 | 42 | 55 | 94 | 36 | 25 | 30 | 0.49 |
DIN6343-F48 | 48 | 60 | 94 | 42 | 29 | 36 | 0.57 |
DIN6343-F56 | 56 | 68 | 94 | 50 | 35 | 42 | 0.65 |
DIN6343-F66 | 66 | 84 | 110 | 60 | 42 | 52 | 1.16 |
