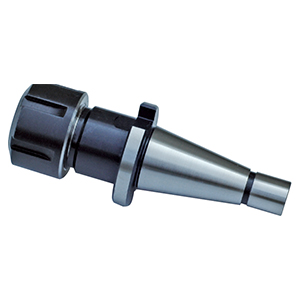

7:24 taper collet chuck
Product Detail
7-24 TAPER COLLET CHUCK
Order No. | 7:24 NO. | d | D | L1 |
30XER11-50 | 30 | 1～7 | 19 | 50 |
30XER16-63 | 30 | 1～10 | 28 | 63 |
30XER20-63 | 30 | 1～13 | 34 | 63 |
30XER25-63 | 30 | 1～16 | 42 | 63 |
30XER32-63 | 30 | 2～20 | 50 | 63 |
30XER40-75 | 30 | 3～26 | 63 | 75 |
40XER16-63 | 40 | 1～10 | 28 | 63 |
40XER20-60 | 40 | 1～13 | 34 | 60 |
40XER25-60 | 40 | 1～16 | 42 | 60 |
40XER32-70 | 40 | 2～20 | 50 | 70 |
40XER40-60 | 40 | 3～26 | 63 | 60 |
40XER50-100 | 40 | 6～34 | 78 | 100 |
50XER16-63 | 50 | 1～10 | 28 | 63 |
50XER20-60 | 50 | 1～13 | 34 | 60 |
50XER25-60 | 50 | 1～16 | 42 | 60 |
50XER32-70 | 50 | 2～20 | 50 | 70 |
50XER40-70 | 50 | 3～26 | 63 | 70 |
50XER50-90 | 50 | 6～34 | 78 | 90 |
