ER Milling chuck set

Product Detail

MILLING CHUCK SET

MILLING CHUCK SET

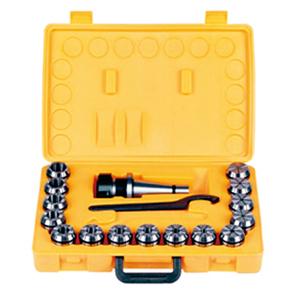

              1.  A set included: 1 collet  chuck,1  clamping nut, full set of collets  snd 1 spanner

             2.  Packed in  a  wooden case  or plastic  case



 Order  No.

 Hole size

 Pcs/set

 Shank

in

mm

ER16-8in(mm)

3/32 1/8 3/16 7/32

1/4 5/16 11/32 3/8

2 3 4 5 6 7 8 10

8

R8



MS2~MS6



ISO30 ISO40



ISO50



1/2″ str.sh



5/8″ str.sh



3/4″ str.sh



1″ str.sh



1-1/4″str.sh

ER25-6in(mm)

1/8 3/16   5/16 3/8 1/2 5/8

4 6 8 10 12 16

6



ER25-10in(mm)

3/32 1/8 3/16 1/4 5/16

3/8 7/16 1/2 9/16 5/8



3 4 5 6 8 10 12 14 15 16



10

ER32-6in(mm)

1/4 5/16 3/8 1/2 5/8 3/4

6 8 10 12 16 20

6



ER32-12in(mm)

3/32 1/8 3/16 1/4 5/16 3/8

7/16 1/2 9/16 5/8 11/16 3/4



3 4 5 6 8 10 12 14 15 16   18 20



12

ER40-8in(mm)

1/8 1/4 3/8 1/2 5/8 3/4 7/8 1

3 5 8   12 15 18 22 26

8



ER140-15in(mm)

1/8 3/16 1/4 5/16 3/8 7/16 1/2

9/16 5/8 11/16 3/4 13/16 7/8 15/16 1

3 4 5 6 8 10 12 14 15

16 18 20 22 24 26



15



              Thread of  draw  bar


 Taper of  collet  chuck

Thread of  draw  bar

R8

7/16"-20UNF

7:24 30

M12×1.75

1/2"-13UNC

7:24 40

M16×2.0

5/8"-11UNC

7:24 50

M24×3.0

1"-8UNC

MS2

M10×1.5

3/8"-16UNC

MS3

M12×1.75

1/2"-13UNC

MS4

M16×2.0

5/8"-11UNC

MS5

M20×2.5

3/4"-10UNC

MS6

M24×3.0

1"-8UNC
