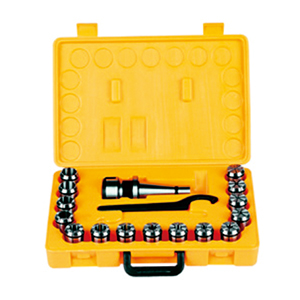

J7325 Milling chuck set
Product Detail
J7325 MILLING CHUCK SET
Order No. |
Pcs/set | d |
Shank |
Wt(kg) | |
mm | in | ||||
R8-J7325/8mm(in) |
8 |
3 5 8 12 15 18 22 25 |
1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 | R8 | 3.58 |
30-J7325/8mm(in) | ISO30 | 2.52 | |||
40-J7325/8mm(in) | ISO40 | 2.61 | |||
45-J7325/8mm(in) | ISO45 | 3.09 | |||
50-J7325/8mm(in) | ISO50 | 3.92 | |||
MS3-J7325/8mm(in) | MS3 | 2.32 | |||
MS4-J7325/8mm(in) | MS4 | 2.57 | |||
MS5-J7325/8mm(in) | MS5 | 3.48 | |||
1"-J7325/8mm(in) | 1" | 2.18 | |||
1-1/4"-J7325/8mm(in) | 1-1/4" | 2.78 | |||
R8-J7325/15mm(in) |
15 |
3 4 5 6 8 10 12 14 15 16 18 20 22 24 25 |
1/8 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4 13/16 7/8 15/16 1 | R8 | 4.42 |
30-J7325/15mm(in) | ISO30 | 3.37 | |||
40-J7325/15mm(in) | ISO40 | 3.71 | |||
45-J7325/15mm(in) | ISO45 | 4.29 | |||
50-J7325/15mm(in) | ISO50 | 5.11 | |||
MS3-J7325/15mm(in) | MS3 | 3.52 | |||
MS4-J7325/15mm(in) | MS4 | 3.75 | |||
MS5-J7325/15mm(in) | MS5 | 4.65 | |||
1"-J7325/15mm(in) | 1" | 3.43 | |||
1-1/4"-J7325/15mm(in) | 1-1/4" | 3.80 | |||
