Milling chuck set

Product Detail

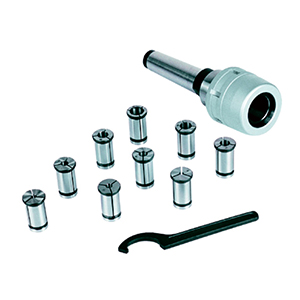

MILLING CHUCK SET

MILLING CHUCK SET

          1.  The  milling  chuck  clamp  with  exceptional  force  and with  a very tight  tolerance   on  run  out

         2.  Used for  the  spindle  taper of  milling  machine:R8,MS2~MS5,  7:24 30~50

         3.  A set included:1  collet  chuck ,full set of  collets  and 1 spanner




 Model



Pcs/set


clamping  range (mm)

 Shank

D(mm)

JM7112

6

4 5 6 8 10 12



R8 MS2

MS3  MS4

MS5 ISO30

ISO40 ISO50

50

JM7116

8

4 5 6 8 10 12 14 16

56

JM7120

10

4 5 6 8 10 12 14 16 18 20

63

JM7125

11

4 5 6 8 10 12 14 16 18 20 25

70

JM7132

12

6 8 10 12 14 16 18 20 25 28 30 32

90


Milling chuck set
