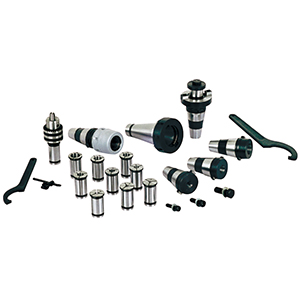

This quick-action chuck set was developed to optiaction the time-con suning exchange of the various milling tools in their mounts.The quick-action mounts is inserted into the spindle.Just as with convertional tapered tool shanks.Then the tool mounts are inserted into the quick-action mount,and secured by one quarter of the bayunet lock.All components of the set are precision-made hardened,and precision-ground.
Order No. | JXT16-40 | Order No. | JXT25-50 |
1个快换装置 | 1quick-action mount | 1个快换装置 | 1quick-action mount |
1个夹头体及8支夹头 | 1collet chuck & 8 collets | 1个夹头体及9支夹头 | 1collet chuck & 9 collets |
4 5 6 8 10 12 14 16 | 4 5 6 8 10 12 14 16 | 6 8 10 12 14 16 18 20 25 | 6 8 10 12 14 16 18 20 25 |
1个莫氏1号中间套 | 1mount MS1 | 1个莫氏2号中间套 | 1mount MS2 |
1个莫氏2号中间套 | 1mount MS2 | 1个莫氏3号中间套 | 1mount MS3 |
1个莫氏3号中间套 | 1mount MS3 | 1个莫氏4号中间套 | 1mount MS4 |
1个B12钻接杆 | 1drill arbor B12 | 1个B16钻接杆 | 1drill arbor B16 |
1个钻夹头 | 1drill chuck | 1个钻夹头 | 1drill chuck |
1个端面铣刀杆 | 1face mill arbor | 1个端面铣刀杆 | 1face mill arbor |
1个勾头搬手 | 1hook spanner | 2个勾头搬手 | 2hook spanner |
