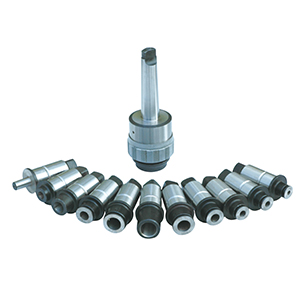

J43 Quick change drilling and tapping multiple chuck

Product Detail

J43 SAFETY QUICK-CHANGE DRILLING AND TAPPING MULTIPLE CHUCK

SAFETY QUICK-CHANGE DRILLING AND TAPPING MULTIPLE CHUCK

This product  combined  drilling   and  tapping  function   into   on.  Its  structure  is  unique   and   is  of  multiple  uses. Only move   the   tightening   ring   of   the   chuck, the   drilling    and  tapping   sleeves can   be   rep   aced   rapidly. When   drilling   the Morse  sleeve can  be  locked  automatically;   when  tapping,  torque overloaded device  can  slide smoothly   to  prevent  the screw tape  from   being  broken.    For   screw taps  of  different  diameter,   only  the  screw nut   is  adjusted,   different  slide torque  can   be  obtained  and  it is convenient   and  fast.It  is suitable   for  operating  on  lathe. Drilling   and  boring  machines, the  labor  strengthen  can  be  greatly   reduced  and  the  assist time is reduced  by  more  than  80﹪.


Order  No.


Morse    taper


Drilling   range


tapping  range


Drilling  sleeve


Tapping sleeve

J4330A-MS2

MS2





f3~f31.5





M6~M30





MS1,2,3


J4330A-MS3

MS3

M6~8,10,12,16,18~20,24,27~30

J4330A-MS4

MS4

J4330A-MS5

MS5


J4342A-MS5

MS5

f3~f50

M16~M42

MS1,2,3,4


J4342A-MS6

MS6


Tapping  range

M6~8

M10

M12

M16

M18~20

M24

M27~30

M36

M39~42

dxa

6.3X5

8X6.3

9X7.1

12.5X10

14X11.2

18X14

20X16

25X20

28X22.4
