J45 Tapping chuck

Product Detail

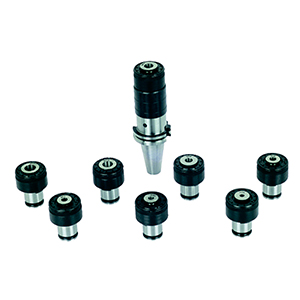

J45 TAPPING CHUCK

J45 TAPPING CHUCK

This unit  is  consisted   of  chuck  and  tap  collet.The chuck has installed compensating  device for  thread pitch.There are  two different  tap  collets,one   with overload   protection   and  one  without. When   using  the   tap  collet with overload protection,the   protection  device can   automatically   release to  avoid  tap-break.Just    adjust  nuts  and  you  can  get  the different   release   torque  quickly   and  conveniently.



 Order  No.



 Shank



 Tapping  range



D(mm)



D1(mm)



d(mm)



L1(mm)

D30—12

DIN69871.30









M3—M12









36

31.75









19

70.1

D40—12

DIN69871.40

44.45

66.7

D50—12

DIN69871.50

69.85

66.7

B30—12

BT30

31.75

69.6

B40—12

BT40

44.45

74.6

B50—12

BT50

69.85

85.6

D30—20

DIN69871.30









M5-M20









56

31.75









31

89.6

D40—20

DIN69871.40

44.45

89.6

D50—20

DIN69871.50

69.85

89.6

B30—20

BT30

31.75

94.6

B40—20

BT40

44.45

97.5

B50—20

BT50

69.85

108.5

D30—36

DIN69871.30









M11-36









80

31.75









48

126.1

D40—36

DIN69871.40

44.45

146

D50—36

DIN69871.50

69.85

144

B30—36

BT30

31.75

129

B40—36

BT40

44.45

149

B50—36

BT50

69.85

160


J45 Tapping chuck
