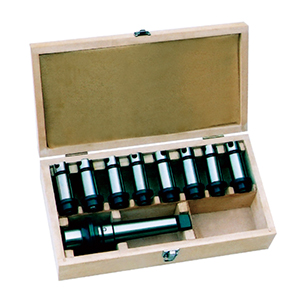

This unit is consisted of chuck shank,drill adaptor(drill chuck arbor,Morse taper adaptor)and tap adaptor,By pushing the lock bush,drill and tap adaptor can be changed quickly.It is especially suitable to lather,drillier and boring machine. This device has many features such as quick tools changing,easy operation and so on.
Order No. | D (mm) | d (mm) | MS.NO.S | L(mm) | Tapping range | MS.NO.T | ||
A | B | C | ||||||
J5212-MS3 | 57 | 25 | MS3 | 192 | 206 | 206 | M3-M12 | MS2 |
J5216-MS4 | 57 | 25 | MS4 | 218 | 232 | 232 | M3-M16 | MS2 |
J5216-MS5 | 57 | 25 | MS5 | 250 | 264 | 264 | M3-M16 | MS2 |
J5224-MS4 | 82 | 40 | MS4 | 270 | 278 | 265 | M8-M24 | MS2 MS3 |
J5224-MS5 | 82 | 40 | MS5 | 302 | 310 | 297 | M8-M24 | MS2 MS3 |
