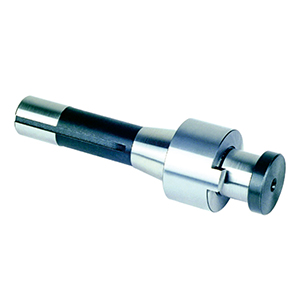

R8 Shell end mill arbor
Product Detail
R8 SHELL END MILL ARBORS
Order No. | d mm | W mm | L mm | Wt(kg) | Order No. | d in | W mm | L mm | Wt(kg) |
SDR8-16 | 16 | 8 | 148 | 0.35 | SDR8-1/2 | 1/2 | 6.35 | 150 | 0.47 |
SDR8-22 | 22 | 10 | 155 | 0.70 | SDR8-3/4 | 3/4 | 7.94 | 154 | 0.62 |
SDR8-27 | 27 | 12 | 160 | 0.88 | SDR8-7/8 | 7/8 | 8.7 | 155 | 0.72 |
SDR8-32 | 32 | 14 | 166 | 1.16 | SDR8-1 | 1 | 9.53 | 155 | 0.85 |
SDR8-40 | 40 | 16 | 170 | 1.47 | SDR8-1-1/4 | 1-1/4 | 12.7 | 156 | 1.15 |
SDR8-1-1/2 | 1-1/2 | 15.88 | 163 | 1.36 |
