7:24 shank shell end mill arbor
Product Detail

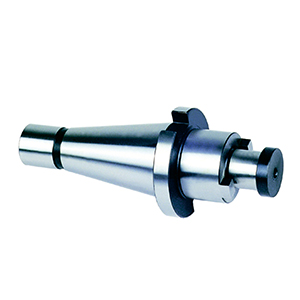

7：24 SHANK END MILL ARBORS
Order No. | D mm | d mm | W mm | L mm | Wt(kg) | d in | W mm | L mm | Wt(kg) |
SD/ISO30×d |
31.75 | 13 | 8 | 121 | 0.31 | 1/2 | 6.35 | 139.5 | 0.55 |
16 | 8 | 126 | 0.37 | 5/8 | 7.14 | 140.5 | 0.64 | ||
22 | 10 | 129 | 0.47 | 3/4 | 7.94 | 144 | 0.75 | ||
27 | 12 | 134 | 0.60 | 7/8 | 8.70 | 145 | 0.88 | ||
32 | 14 | 141 | 1.04 | 1 | 9.53 | 145 | 1.02 | ||
40 | 16 | 150 | 1.59 | 1-1/4 | 12.70 | 146 | 1.41 | ||
50 | 18 | 155 | 2.43 | 1-1/2 | 15.88 | 153 | 1.83 | ||
2 | 19.05 | 180 | 3.57 | ||||||
SD/ISO40×d |
44.45 | 16 | 8 | 153 | 0.71 | 1/2 | 6.35 | 164.5 | 0.92 |
22 | 10 | 156 | 0.82 | 5/8 | 7.14 | 165.5 | 1.01 | ||
27 | 12 | 159 | 0.95 | 3/4 | 7.94 | 169 | 1.13 | ||
32 | 14 | 178 | 1.45 | 7/8 | 8.70 | 170 | 1.30 | ||
40 | 16 | 182 | 1.91 | 1 | 9.53 | 170 | 1.40 | ||
50 | 18 | 187 | 2.80 | 1-1/4 | 12.70 | 171 | 1.70 | ||
60 | 20 | 209 | 4.23 | 1-1/2 | 15.88 | 178 | 2.20 | ||
2 | 19.05 | 205 | 3.90 | ||||||
SD/ISO50×d |
69.85 | 16 | 8 | 205 | 2.88 | 1/2 | 6.35 | 198 | 2.70 |
22 | 10 | 208 | 3.04 | 5/8 | 7.14 | 199 | 2.80 | ||
27 | 12 | 211 | 3.22 | 3/4 | 7.94 | 202 | 2.90 | ||
32 | 14 | 215 | 3.49 | 7/8 | 8.70 | 203 | 3.00 | ||
40 | 16 | 219 | 3.91 | 1 | 9.53 | 203 | 3.20 | ||
50 | 18 | 224 | 4.75 | 1-1/4 | 12.70 | 204 | 4.00 | ||
60 | 20 | 246 | 6.15 | 1-1/2 | 15.88 | 211.5 | 4.00 | ||
2 | 19.05 | 238.5 | 5.70 |
